Chocolate Panning Machine

Chocolate Coating Pan, Chocolate Polishing Machine, Chocolate Panning Machine, Candy Coating Machine, Candy Polishing Machine

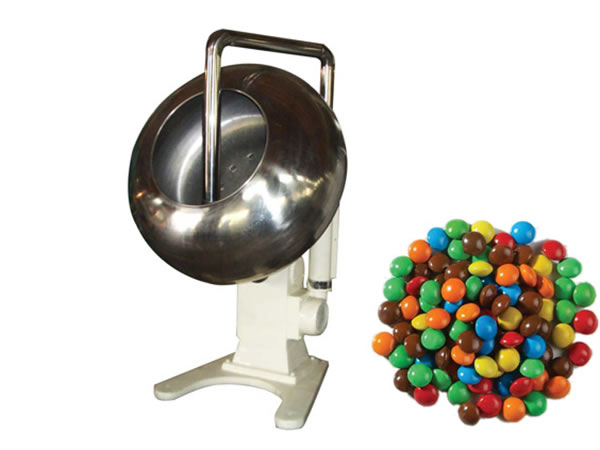

Chocolate Panning Machine

For varieties of chocolate with different shapes such as flat round, oval, melon-shaped, and columnar, Apex PGJ Chocolate Panning Machine is well applicable in polishing their surface for excellent luster. Especially, after the treatment of chocolate polishing machine, the colored aluminum foil packed columnar chocolate will show more distinct decorative patterns on the surface. Also the foil wrapper will fit more smoothly on the chocolate surface.

Inquiry
Technical Parameters
Model 800 1000 1200
Polishing pan diameter (mm) 800 1000 1200
Pan inclined angle 15°~45° 15°~45° 15°~45°
Rotating speed (rpm) 32 28 25
Main motor power (kw) 1.1 1.1 1.1
Air blower power (kw) 0.25 0.25 0.25
Heating power (kw) 2x1 2x1 2x1
Production capacity (kg /h) 30~50 50~70 70~100
Weight (kg) 240 250 300
Outer dimension (mm) 925 *900 *1500 1100 *1100 *1600 1100 *1300 *1600
