Multi-Row On-Edge Packing Machine

Biscuit on Edge Packing Machine, Biscuit on edge Flow Wrapping Machine, Cracker on Edge Packing Solutions

Multi-Row On-Edge Packing Machine

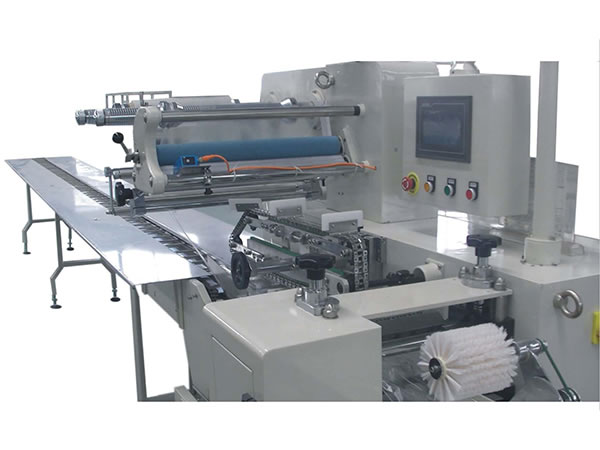

SFCW series multi-row on-edge packing machine
This series multi-row on-edge packing machine features compact structure, simple operation, stable performance, low noise, convenient maintenance, high packing efficiency, and flat packing result. Several safety solutions such as overload protection, leakage protection and error alarm are appreciated for the machine.

Inquiry
Model SFCW450/99 SFCW450/120 SFCW450/150 SFCW590/120 SFCW590/150 SFCW590/180
Max film width (mm) 450 450 450 590 590 590
Size of package (mm) L: 90-400
W: 10-40 40-80 80-150 H: 5-25 25-40 		L: 100-400
W: 10-40 40-80 80-150
H: 10-30 30-60 		L: 110-450
W: 10-40 40-80 80-150
H: 30-50 50-75 		L: 100-400
W: 30-60 60-120 120-200
H: 10-30 30-60 		L: 110-450
W: 30-60 60-120 120-200
H: 30-50 50-60 		L: 120-480
W: 30-60 60-120 120-200
H: 40-65 60-100
Packing speed 20-60 bag /min
Packing material PE, OPP /PE, PT /PE, AL/PE, etc.
Outer dimension (mm) 5000 × 900 × 1750 (L×W×H) 5000 × 1040 × 1750 (L×W×H)
Total weight 1000kgs 1200kgs
