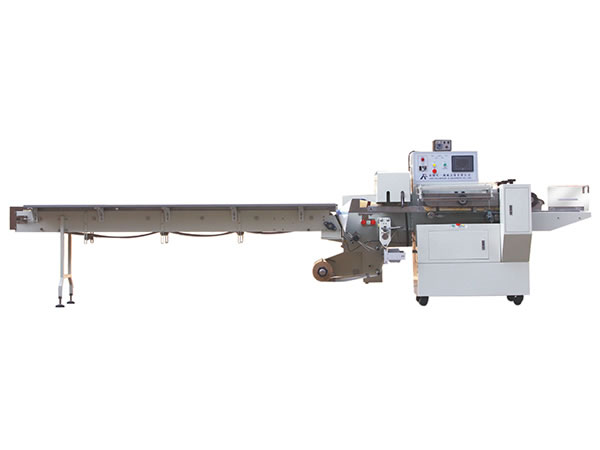

BJWF Series Automatic Bottom Film Feeding Horizontal Packing Machine

Film Feeding Horizontal Flow Packing Machine, Biscuit Horizontal Packing Machine, Horizontal Packaging Machine for Bottom Film Feeding

BJWF Series Automatic Bottom Film Feeding Horizontal Packing Machine

Applications: bulk packed solid products such as instant noodles with multi sachets, rice noodles, fine dried noodles, vermicelli, pencils, candles and chalks, etc.

Inquiry
Model BJWF 450/099 BJWF 450/120 BJWF 450/150
Max film width (mm) 450 450 450
Packing speed (bag /min) 30-180 30-150 30-120
Cutting length (mm) 75-400 100-450 120-450
Packing width (mm) ≤ 35 5-45 40-70
Total power 4kW 4kW 4kW
Voltage 220V 50Hz 220V 50Hz 220V 50Hz
Machine outer dimension (mm) 4950 *960 * 1420 (L *W *H) 4950 *960 * 1420 (L * W *H) 4950 *960 * 1420 (L *W *H)
Machine weight 1000kgs 1000kgs 1000kgs
